1969 - 1970  Full Size Chevrolet Car Lights and Light Assemblies

NOTE:  Click on a thumbnail picture to see a larger view.                   03/20/2025 09:49 AM

To Buy something, email me 'lights@taillightking.com' or Call me 936-524-6116!!

Part # Years Type Description Picture Price
C2002 All Exhaust Stainless Exhaust Deflector with "Chevrolet" Logo, fits most pipes - Flat part wraps around Tailpipe, end 5 1/2" wide x 6" deep to strap (in Stock) Chevrolet_ExhaustDeflector.JPG (43536 bytes) $25 ea.
C687201 68-72 Mirror Complete, duplicate of original with bow tie, for all Impala and Caprice Convertibles, fits either side, 4 5/8" base x 4 5/8" dia. head x 5 1/2" tall. 68-72_ImpalaConvertable_Mirror1.JPG (26222 bytes)68-72_ImpalaConvertable_Mirror2.JPG (53054 bytes) $40 ea.
C687204L 68-? Mirror Complete with base gasket and mount, LH, duplicate of original, for all models that used the rectangular mirror, 5 1/4" x 3 3/4" mirror head and 4 5/8" base. Very nice and in stock. C687204_Rectangular_GM_RH_Mirror2.JPG (65739 bytes)C687204_Rectangular_GM_RH_Mirror1.JPG (66370 bytes) $35 ea.
C687204R 68-? Mirror Complete with base gasket and mount, RH, duplicate of original, for all models that used the rectangular mirror, 5 1/4" x 3 3/4" mirror head and 4 5/8" base. Very nice and in stock. C687204_Rectangular_GM_RH_Mirror2.JPG (65739 bytes)C687204_Rectangular_GM_RH_Mirror1.JPG (66370 bytes) $35 ea.

1969

1969 All Models
Guide 15 69 Park Light Assembly, Fits Impala and all models either side, Amber lens, Used - Excellent lens and base (Have 0) $35Sold

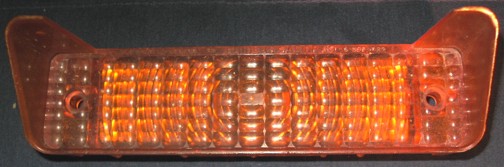

Guide 15 5961196 69 Park light Lens, Impala/Caprice, Amber, 5961196, Approx. 6 13/16" x 1 3/4", Used - good condition (have 3) Guide15_69_Impala-Caprice_Used_Amber_PLLens.JPG (29998 bytes) $20 ea.

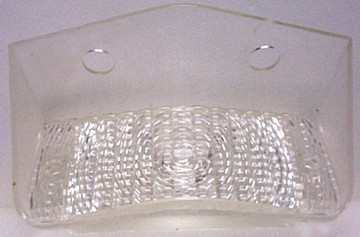

Guide 15 5961032 69 Park light Lens, Impala/Caprice, Clear, 5961032, Approx. 6 13/16" x 1 3/4", Used - One side of Flang is broken off (have 1) $25
Guide 15 69 Side Marker Lens Assembly Only, Rear Red, Used -  Light assembly is nice, 3" x 1 1/2", (Have 3) $10 ea.

1969 Biscayne & Belair

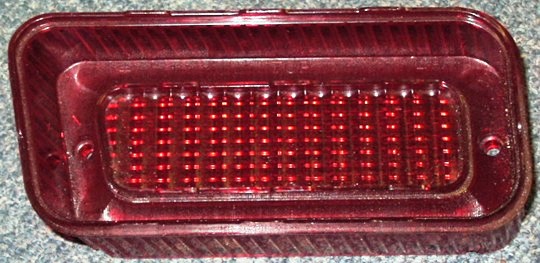

1047 69 Taillight Lens, Belair/Biscayne LH. Outer, 7 1/4" x 3 3/8", NORS (Have several) $10 Ea.
Guide 15
5961186 		69 Taillight Lens, Biscayne/Belair, LH Outer, 7 1/4" x 3 3/8", NOS 5961186 (have 1) 69_15Belair_RH-NOS_TLLens.jpg (22525 bytes) $13 Ea.

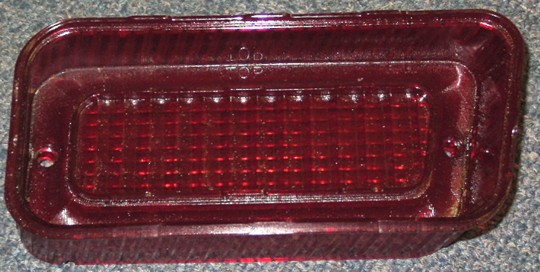

1049 69 Taillight Lens, Belair/Biscayne RH Outer, 7 1/4" x 3 3/8", NORS (Have several) $10 Ea.
Guide 15
5961185 		69 Taillight Lens, Biscayne/Belair, RH Outer, 7 1/4" x 3 3/8", NOS 5961185 (have 1) 69_15Belair_LH-NOS_TLLens.jpg (22450 bytes) $13 Ea.
Guide 15
5961475		 69 Backup Lens, Biscayne/Belair, Fits either side, Used - Good Condition (Have 2) $15 ea

1969 Impala

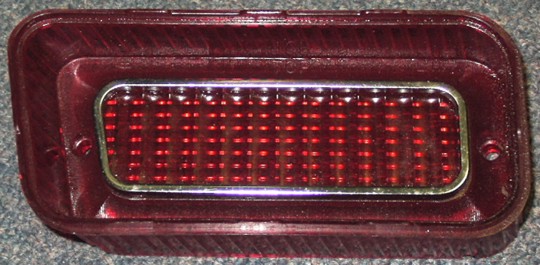

1048 69 Taillight Lens, impala LH. Outer, 7 1/4" x 3 3/8", NORS (Have several) $13 Ea.

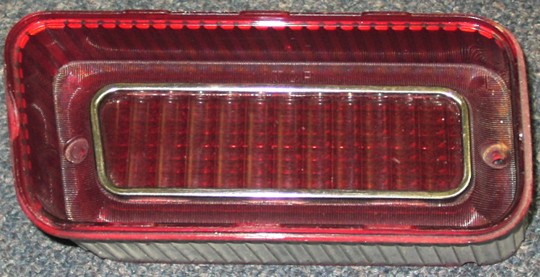

Guide 15 69 Taillight Lens, LH. Outer,  Impala, 7 1/4" x 3 3/8", NOS (Have 1) $30
1050 69 Taillight Lens, impala RH. Outer, 7 1/4" x 3 3/8", NORS (Have several) $13 Ea.
Guide 15
5961186		 69 Taillight Lens, impala, RH. Outer, 5961186,  7 1/4" x 3 3/8", NOS (Have 0) $30 sold
Guide 15
5961186		 69 Taillight Lens, impala, RH. Outer, 5961186,  7 1/4" x 3 3/8", Used - Good Condition (Have 5) $20 ea.
Guide 15 69 Taillight Assembly, RH. Outer,  Impala, Used very nice (Have 0) $35Sold
1051 69 Taillight Lens, impala Inner, 7 3/8" x 3 3/8", NORS (Have several)   $13 Ea.
Guide 16

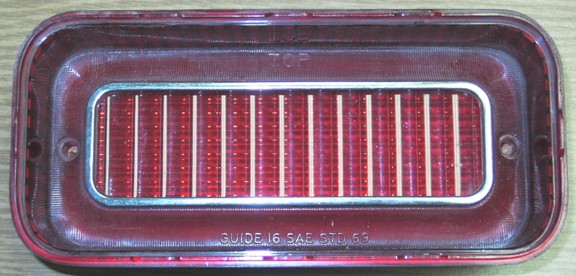

5960883		 69 Taillight Lens, Impala, Inner most lens for each side, 7 3/8" x 3 3/8", NOS (Have 3) $30 ea.

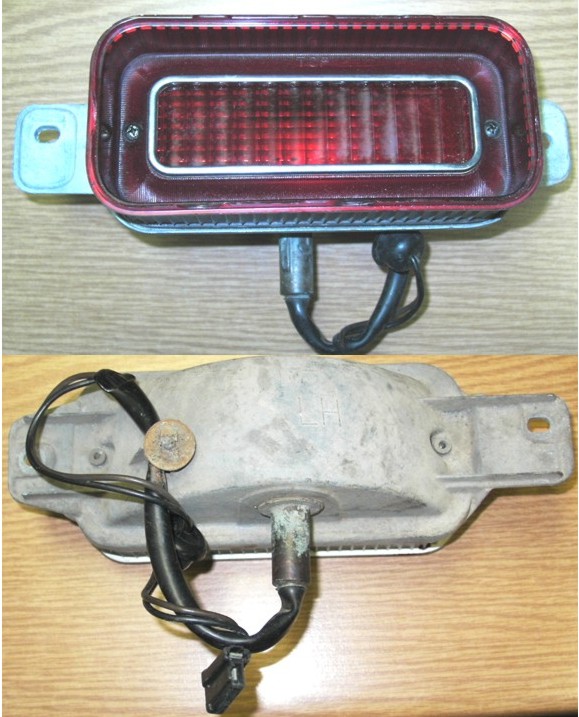

Guide 16 69 Taillight Assembly, Impala, LH Inner, Used - Good Condition (Have 1) $35
Guide 16
5960883		 69 Taillight Lens, Impala, Used - Good Condition (Have 4) $20 ea.

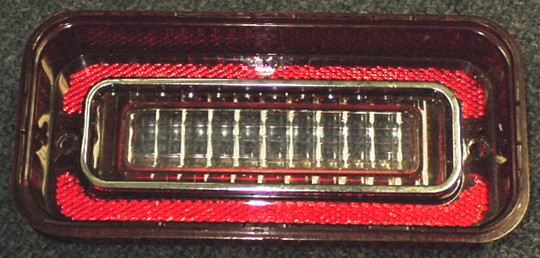

6325 69 Backup Lens, impala, 7 3/8" x 3 3/8", NORS (Have several) $20 Ea.
Guide 15
5961475		 69 Backup Lens, Impala with 1 trim ring, Fits either side, Used - Good Condition (Have 5) $20 ea
Guide 16
 69 Backup Assembly, Impala, RH, Used - Good Condition (Have 1) $50 ea

1969 Caprice
Guide 16 69 Taillight Lens, Caprice with 2 trim rings, Fits Center, 7 3/8" x 3 3/8", Used - Excellent condition (Have 0)   $30 sold
Guide 16
5981185		 69 Taillight Lens, Caprice with 2 trim rings, Fits LH Outer 5981185, NOS or super nice used (Have 0)   $30 sold
Guide 16
5981185		 69 Taillight Lens, Caprice with 2 trim rings, Fits LH Outer 5981185, Used - nice (Have 1) $50 ea.
Guide 16
5961186		 69 Taillight Lens, Caprice with 2 trim rings, Fits Outer RH, 5961186, 7 3/8" x 3 3/8", Used - Excellent condition (Have 0)   $30 sold

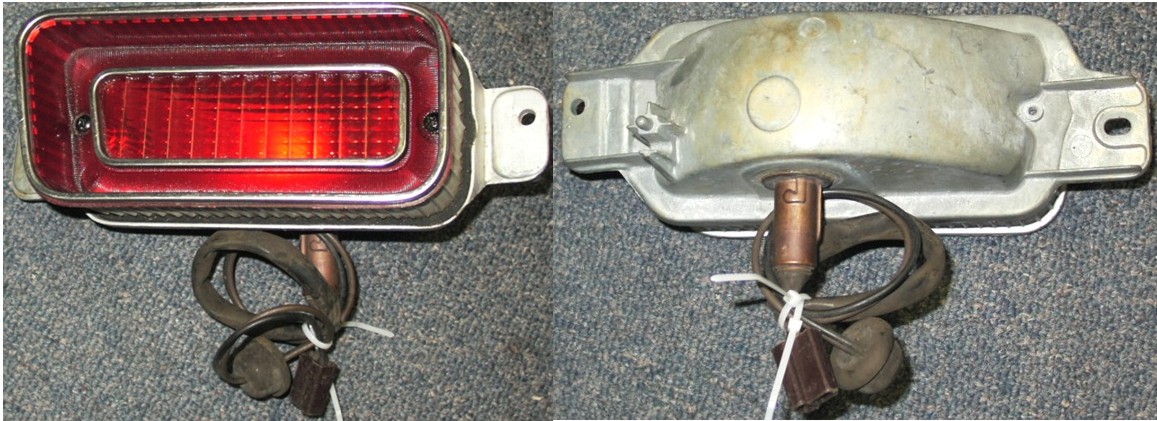

Guide 15 69 Taillight Assembly, LH. Outer,  Caprice, Used very nice (Have 0) $35 sold

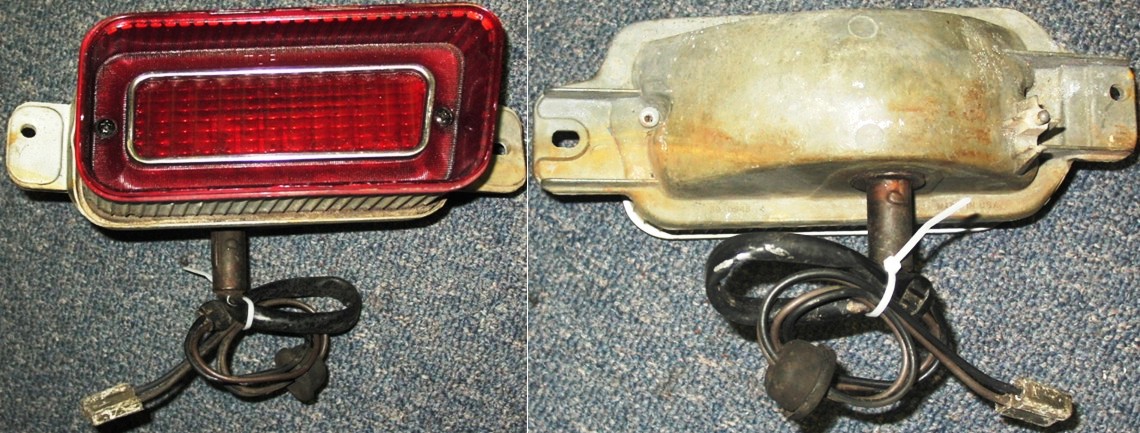

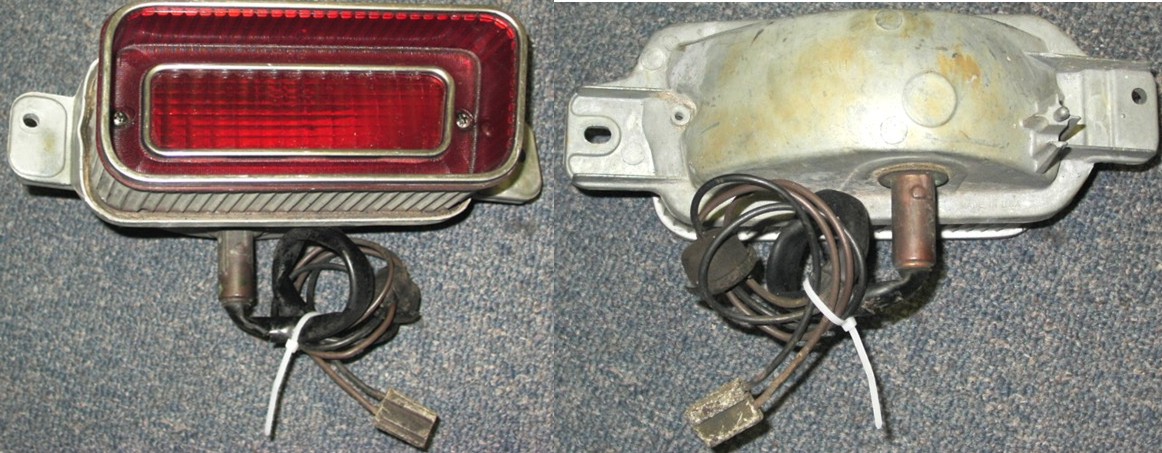

Guide 15 69 Taillight Assembly, RH. Outer,  Caprice, Used very nice (Have 0) $50 sold
Guide 15

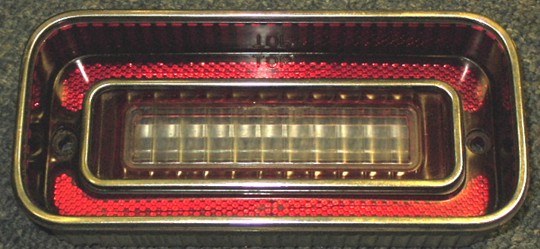

5961475		 69 Backup Lens, Caprice with 2 trim rings, 5961475, 7 3/8" x 3 3/8", Used - Excellent condition (Have 1) $30 Sold

1969 Station Wagon
Guide 15s 5961511 69 Taillight Lens, Chevy Station Wagon , Outside, No Chrome, Fits right or left, Used - Good (Have 2) $25 ea.
Guide 15s 5961511 69 Taillight Lens, Chevy Station Wagon , Outside, With Chrome, Fits right or left, Used - Good (Have 0) $30 ea.
Guide 15s 5961731 69 Taillight Lens, Chevy Station Wagon , inside, With Chrome, Fits right or left, Used - Good condition, (have 4) $30 Ea.
Guide 16SR 69 Taillight Base and lens assembly, Chevy Station Wagon, Fits Inboard on tail gate, Has dual Filiment bulb holder, Used - Good condition, (have 0) $125 ea.
sold
Guide 15s 69 Taillight Base and lens assembly, Chevy Station Wagon, Fits Inboard on tail gate, Has dual Filiment bulb holder, Used - Good condition, (have 0) $125 ea.
sold
Guide 15s 69 Taillight Base, Chevy Station Wagon, Fits LH Outer, Has dual Filiment bulb holder, Used - Good condition, (have 2) $35 ea.
Guide 15s 69 Taillight Base and lens Assembly, Chevy Station Wagon, Fits RH Outer, Has dual Filiment bulb holder, Used - Good condition, (have 1)   $125

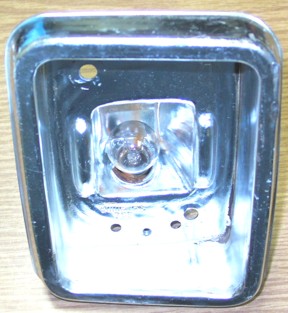

Guide 15s 69 Taillight Base, Chevy Station Wagon, Fits RH Outer, Has dual Filiment bulb holder, Used - Good condition, (have 1) $35
Guide 15s 69 Backup Base and lens assembly, Chevy Station Wagon, Fits Outboard on tail gate, Lens has Stainless trim, Has Single Filiment bulb holder, Used - Good condition, (have 2) $125 ea.
Guide 15s 5961735 69 Backup Lens, Chevy Station Wagon , No Chrome, Fits right or left, Used - Good condition, (have 2) $20 Ea.

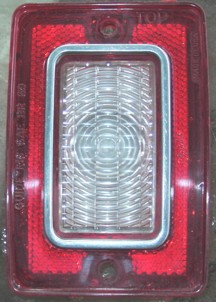

Guide 15s 5961735 69 Backup Lens, Impala Station Wagon , With Chrome, Fits right or left, Used - Good condition, (have 3) $25 Ea.

1970

1970 All Models
Guide 15
5962258 		70 Park light Lens, Impala, NOS, 5962258 Amber, (have 0) 70_15Impala_AmberPLLens.jpg (21425 bytes) $50Sold
Guide 15
5962258 		70 Park light Lens, Chevy full size - all models, 5962258 Amber, Used - Very good condition (have 1 Good one small rock ding and 1 with some of flang broken off) 70_15Impala_AmberPLLens.jpg (21425 bytes) $60 ea. & $30
Guide 15

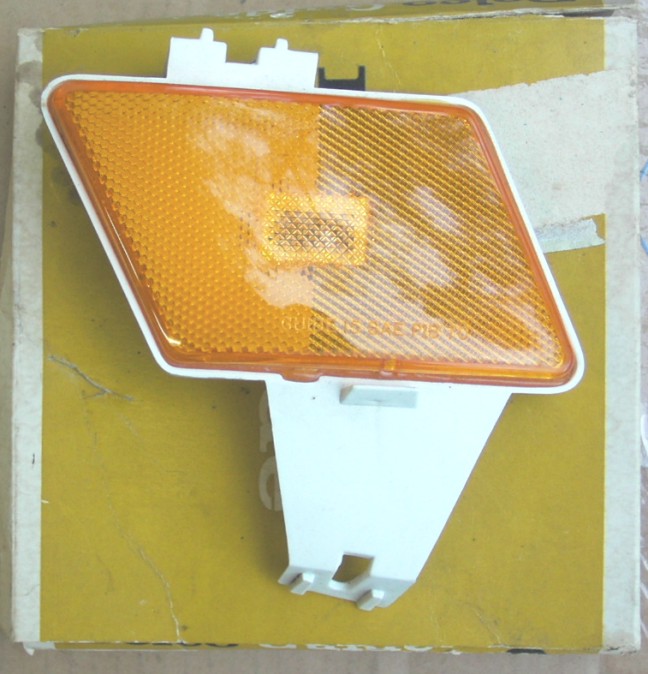

917091		 70 Side Marker Assembly, Side Marker Amber LH., NOS, 917091, (have 0) 70_Guide 15_Impala_NOS_LH_917091_SMAssy.JPG (95079 bytes) $sold
Guide 15

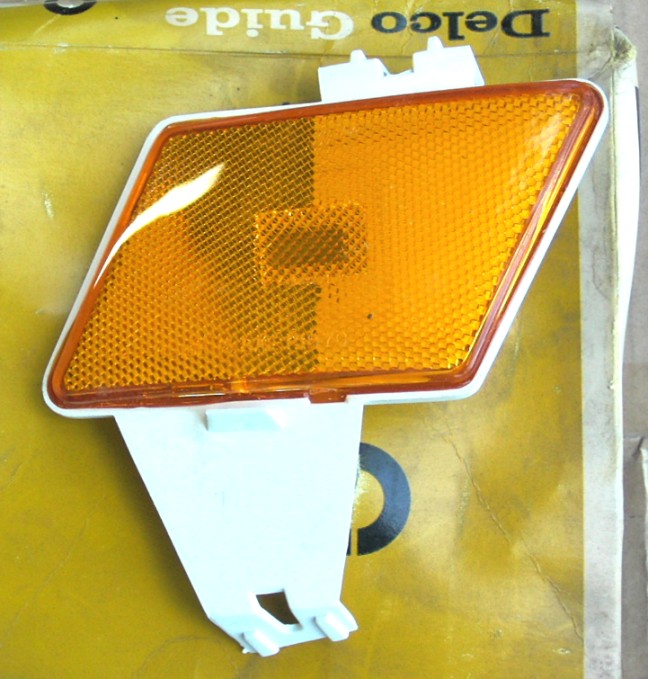

917092		 70 Side Marker Assembly, Side Marker Amber RH., NOS, 917092, (have 0) 70_Guide 15_Impala_NOS_RH_917091_SMAssy.JPG (109151 bytes) $Sold

1970 Caprice & Impala
Guide 16
5962311		 70 Tail light Backing, Caprice & Impala, LH., 5962311, Used - Excelent condition with bulb sockets (Have 0) $50 sold
Guide 16
5962312		 70 Tail Light Backing, Caprice & Impala, RH., 5962312, Used - Excelent condition with bulb sockets (Have 1) $50

1970 Caprice - Has Stainless trim on facing edge of lens
Guide 16 70 Taillight Lens, Caprice LH. Inner 5962317 with stainless trim, Used - Excelent condition (Have 2) $25 Ea.

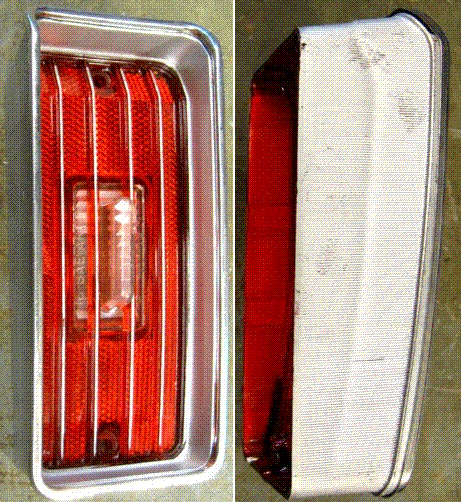

Guide 16 70 Backup Lens, Caprice LH. 5962325 with stainless trim, NOS, Note: These have the bump in the backup lens (Have 7) $30 Ea.
Guide 16 70 Backup Lens, Caprice LH. With Stainless trim 5962326, NOS, Note: These do not have the bump in the backup lens (Have 1) $30
Guide 16 70 Taillight Assembly, Caprice LH., with stainless trim on lenses, NOS - excellent condition, (have 0) $105 sold

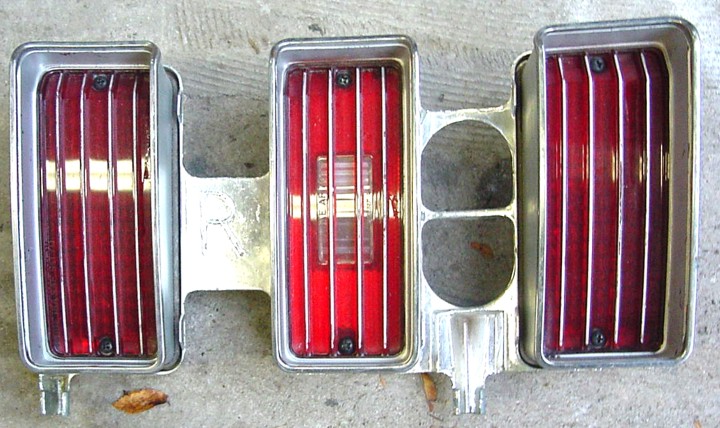

Guide 16 70 Taillight Assembly, Caprice RH., with stainless trim on lenses, NOS - excellent condition, (have 0) 70_Guide16_Caprice_RH_TLAssy.JPG (112206 bytes) $105Sold

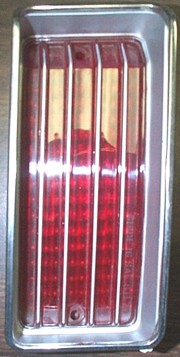

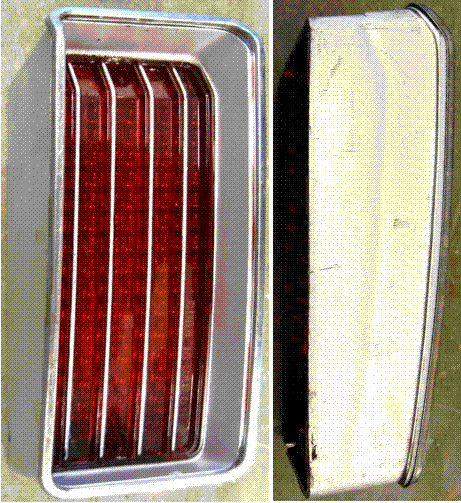

Guide 16 70 Taillight Lens, Caprice, NOS, RH. Outer 5962318, with stainless trim (Have 1) 70_16Caprice_NOS_RH_TLLens.jpg (23729 bytes) $30
Guide 16 70 Taillight Lens, Caprice, RH. Outer 5962318, Used - Excellent condition  (Have 6) $20 ea.
Guide 16A 70 Taillight Lens, Caprice, 6 1/2" x 2 3/4",  LH. Outer 5962333 with stainless trim, Used - Excellent condition (Have 2) $30 Ea.
Guide 16A 70 Taillight Lens, Caprice, NOS, 6 1/2" x 2 3/4",  RH. Outer 5962334 with stainless trim (Have 4) 70_16A-Caprice_NOS_RH_TLLens.jpg (32148 bytes) $30 Ea.
Guide 16A 70 Taillight Lens, Caprice, 6 1/2" x 2 3/4",  RH. Outer 5962334 with stainless trim, Used - Excellent condition (Have 7) $30 Ea.
Guide 16 70 Backup Lens, Caprice RH. 5962326 with stainless trim, NOS, Note: These may or may not have the bump in the backup lens (Have 7) $30 Ea.
Guide 16 70 Backup Lens, Caprice RH. 5962326 with stainless trim, Used - Excellent Condition, Note: These may or may not have the bump in the backup lens (Have 6) $30 Ea.
Guide 15A 70 Side Marker Assembly, Red Side Marker, Fits All Big Chevy's rear either side, Used - Excellent or NOS condition (Have 1) $30 ea.
Guide 15A 70 Side Marker Assembly, Red Side Marker with bezel, Fits All Big Chevy's rear, LH, Used - Good condition (Have 0) $35Sold

1970 Impala
Guide 16A

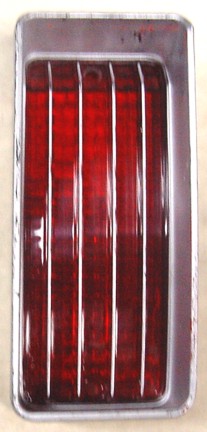

5962411 		70 Taillight Lens, Impala, LH. Inner, Used - excellent condition 5962411 (have 7) 70_16A_Impala_Used_LHInner_TLLens.JPG (26729 bytes) $20 Ea.
Guide 16

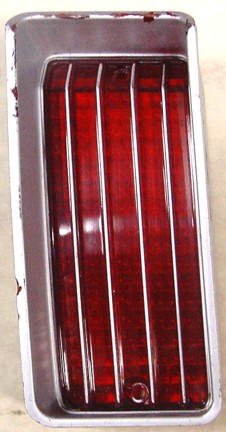

5962401 		70 Taillight Lens, Impala, LH. Outer, Used - excellent condition 5962401 (have 7) 70_16_Impala_Used_LHOuter_TLLens.JPG (32176 bytes) $20 Ea.
Guide 16
5962407 		70 Backup Lens, Impala, LH. NOS, 5962407 (have 9) 70_16_Impala_NOS_LH_BULens.jpg (27730 bytes) $25 Ea.
Guide 16

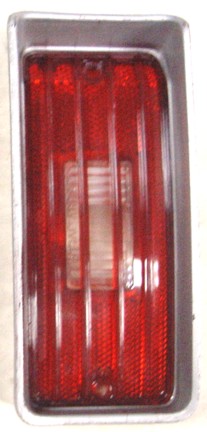

5962407 		70 Backup Lens, Impala, LH. Used - Excellent Condition, 5962407 (have 1) 70_16_Impala_Used_LH_BULens.JPG (25267 bytes) $20 Ea.
Guide 16A

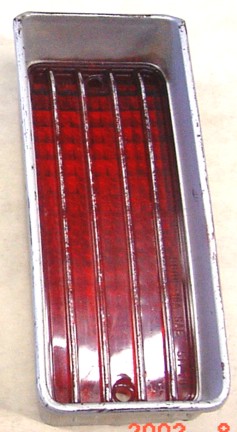

5962412 		70 Taillight Lens, Impala, RH. Inner, Used - Excellent Condition, 5962412 (have 4) 70_16A_Impala_Used_RHInner_TLLens.JPG (33185 bytes) $20 ea.
Guide 16
5962402 		70 Taillight Lens, Impala, RH. Outer, Used - Excellent Condition, 5962402 (have 5) 70_16_Impala_Used_RHOuter_TLLens.JPG (32766 bytes) $20 ea.
Guide 16
5962408 		70 Backup Lens, Impala, RH., NOS, 5962408 (have 2) 70_16_Impala_NOS_RH_BULens.jpg (30636 bytes) $25 Ea.
Guide 16

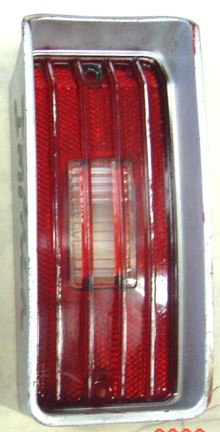

5962408 		70 Backup Lens, Impala, RH., Used - Excellent Condition, 5962408 (have 2) 70_16_Impala_Used_RH_BULens.JPG (29930 bytes) $20 Ea.

1970 Belair/Biscayne

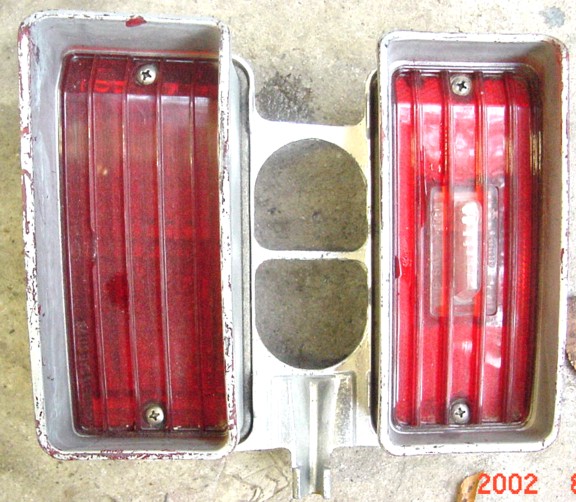

Guide 15 70 taillight Assembly, Belair, LH, excellent condition (have 1) 70_Guide15_Belair_LH_TLAssy.JPG (100814 bytes) $40
Guide 15

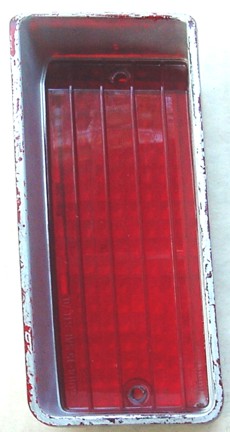

5962343 		70 taillight Lens, Belair, used - good condition, LH, 5962343 (have 5) 70_Guide15_Belair_LH_TLLens.JPG (25927 bytes) $20 Ea.
Guide 15

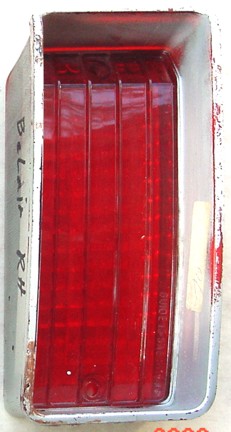

5962344 		70 taillight Lens, Belair, used - good condition, RH, 5962344 (have 2) 70_Guide15_Belair_RH_TLlens.JPG (29509 bytes) $20 ea.
Guide 15
5962344 		70 taillight Lens, Belair, NOS, RH, 5962344 (have 1) 70_Guide15_Belair_RH_NOS_TLlens.jpg (23901 bytes) $25
Guide 16

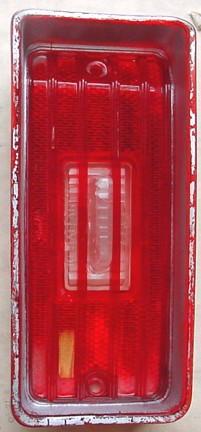

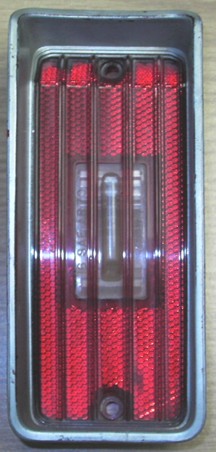

5962407 		70 Backup Lens, Belair, NOS, LH. 5962407 (have 7) 70_Guide16_Belair_LH_NOS_BULens.JPG (29585 bytes) $25 Ea.
Guide 16
5962407 		70 Backup Lens, Belair, Used - Good condition, LH. 5962407 (have 1) $20 Ea.
Guide 16

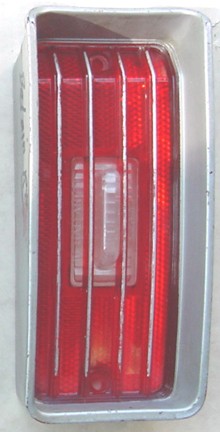

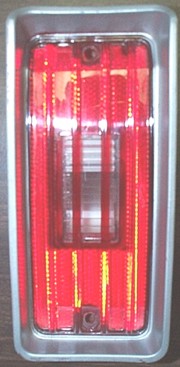

5962408 		70 Backup Lens, Belair, NOS, RH. 5962408 (have 4) 70_16Belair_NOS_RH_BULens.jpg (23151 bytes) $25 Ea.
Guide 16
5962408 		70 Backup Lens, Belair, used - good condition, RH. 5962408 (have 4) 70_Guide16_Belair_RH_BULens.JPG (25334 bytes) $20 Ea.

1970 Station Wagon

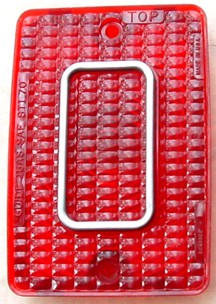

Guide 16as 5961322 70 Taillight Lens, Station Wagon, used - good condition, with trim, (have 5; 3 good and 2 with chips) 70_Guide16AS_StaWgn_Inner_TLLens.jpg (34016 bytes) $25 Ea.
Guide 16s 5961291 70 Taillight Lens, Station Wagon, fits RH or LH, with trim, used - Some chips on the edge, (have 3) 70_Guide16S_StaWgn_Outer_TLLens.JPG (30105 bytes) $25 Ea.
Guide 15S 5960065 70 Taillight Lens, Station Wagon, fits RH or LH, without trim, 4 3/4" x 3 3/8", used - good condition, (have 3) $20 ea.

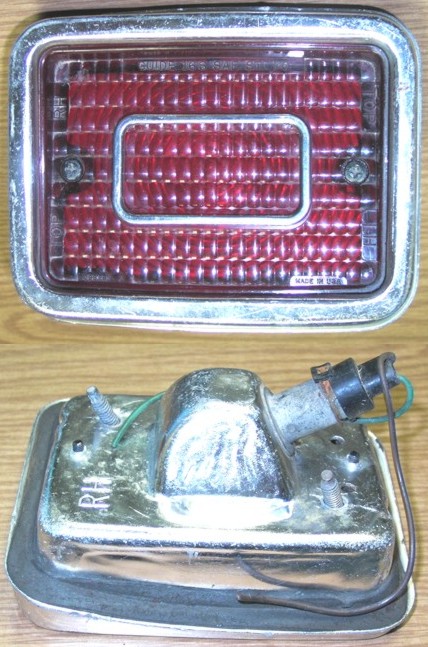

Guide 16s 70 Taillight Assembly, Station Wagon, fits RH, Lens with trim, 4 1/2" wide x 5 3/4" tall, used - good condition, (have 0) $Sold
Guide 16s 5961245 70 Backup Lens, Station Wagon, NOS, no trim, (have 1) 70_16SImpalaStaWgn_NOS_BULens.jpg (36018 bytes) $20
Guide 16s 5961245 70 Backup Lens, Station Wagon, used - good condition, no trim, (have 1) 70_Guide16S_StaWgn_NoTrim_BULens.jpg (33797 bytes) $12
Guide 16s 5961245 70 Backup Lens, Station Wagon, used - good condition, with trim, (have 8) 70_Guide16S_StaWgn_BULens.JPG (30986 bytes) $20 ea.

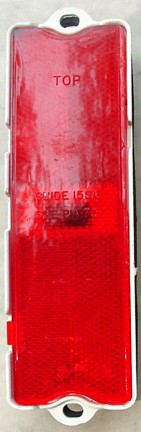

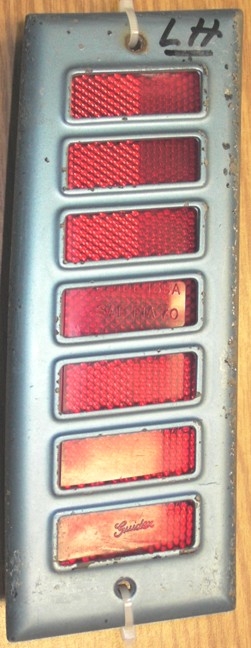

Guide 15sa 5962782 70 Side Marker Assembly, Station Wagon,Red - Rear, , 6-1/2" x 2" lens, Have 1 NOS & 1 excellent used,  (have 2) 70_Guide15SA_NOS_Rear_SMAssy.JPG (20220 bytes) $25 ea.

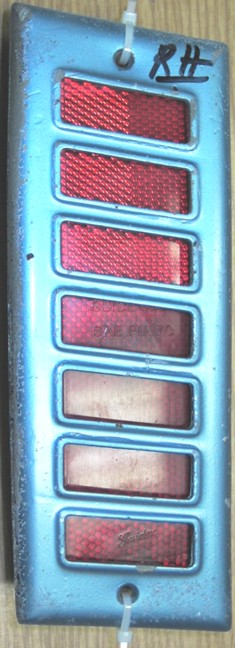

Guide 15sa 70 Side Marker Lens Assembly and Cover, Station Wagon, Red - Rear, LH, 7 3/4" x 2 3/4", Used - Good Condition, (have 1) $35
Guide 15sa 70 Side Marker Lens Assembly and Cover, Station Wagon, Red - Rear, RH, 7 3/4" x 2 3/4", Used - Good Condition, (have 1) $35
Guide 15S 5964177 70 Side Marker Impala Station Wagon, Red Reflector, LH, (have 0) 70_15SImpalaStaWgn_NOS_LHReflector.jpg (8265 bytes) $20Sold
Guide 15S 5964178 70 Side Marker Impala Station Wagon, Red Reflector, RH, , Used - very nice (have 1) $20
