Spotlight
Bulbs and Bulb Sockets
NOTE: Click on a thumbnail picture to see a larger view!! 03/10/2022 12:11 PM
|
6 Volt (regular - Non-Sealed Beam) SpotLight Bulbs |
||||
| Part # | Year/Usage | Description | Picture | Price |
| 1133 | Spotlight, Backup | Single Element, Single contact, 6-8 Volt, 32 Candle Power, Backup light bulb, Standard size 2-pin base, pins directly across, 2" tall. Specifications (Have 24) |
 |
$20 ea. |
| 1134 | Spotlight, Backup | Single Element, Single contact, 6 Volt, 24.2 Watt, Backup light bulb, Standard size 2-pin base, pins directly across, 2" tall. Specifications (Have 8) |
 |
$20 ea. |
| 1183 | Backup, Spotlight | Single Element, Single contact, 6-8 Volt, 50 Candle Power, Backup light bulb, Standard size 2-pin base, pins directly across, 2" tall. Specifications (Have 0) |
 |
$20Sold |
| 1184 | Spot, Driving, Fog, Headlight | Single Element / 2-contact, 6 Volt, 50cp, Standard size - 1 15/16" tall, 2-pin base, pins directly across. Specifications (Have 0) |
 |
$10 Sold |
| 1209 | Spot, Driving, fog | Single Element / Single contact, 6 Volt, 25 Watt, Large size - 2" tall, Pre-Focused, Specifications (Have 0) |
 |
$10Sold |
| 1323 | Spot, Driving, fog | Single Element / Single contact, 6 Volt, 32 C.P., Large size - 2" tall, Pre-Focused, Specifications (See Fog-Driving Light Bulbs) 1940-41 Caddy Fog Light Bulb |
 |
$25 ea. |
|
12 Volt Incandescent (regular - Non-Sealed Beam) Bulbs, Headlight -Spot |
||||
| Part # | Year/Usage | Description | Picture | Price |
| 1143 | Headlight, Spot | Single Element/1-Contact, 12 Volt, 32 Candle power, Standard size 2-pin base, pins directly across, 1 15/16" tall. Specifications (Have 1) |
 |
$10 ea. |
| 1195 | Spot, Driving, Fog, Headlight |
Single Element / Single contact, 12 Volt, 35 Watt, 50cp, Standard size - 1 15/16" tall, 2-pin base, pins directly across. Specifications (See Fog Light Bulbs) |
 |
$25 ea. |
|
SpotLight Incandescent Bulbs, 6 & 12 Volt - Single Element (Sealed Beam) |
||||
| Part # | Year/Usage | Description | Picture | Price |
| PARSPOT | 56 Up | Sealed Beam, Spotlight Bulb, 4 1/4", 12 Volt - 35 Watt, 2-Screw Terminals, (Have 2) |
 |
$30 ea. |

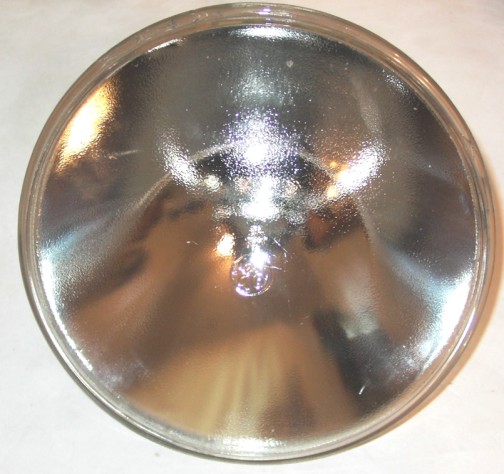

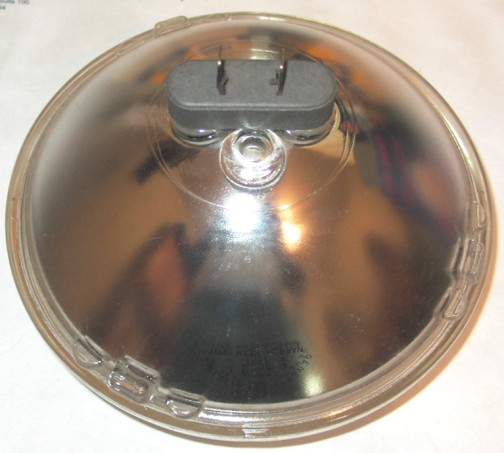

| 469 | 120 Volt | Sealed Beam, Narrow Beam Spotlight Bulb, 300 Watt, 120Volts, 2-Prong (Have 1) |   |
$30 |
| 4406 | Up to 56 | Sealed Beam, Spotlight Bulb, 4" face x 4 1/4" total diameter, 12 Volt - 35Watt , 2-Screw Terminals, (Have 1) |
 |
$30 |
| 4416 | Up to 56 | Sealed Beam, Spotlight Bulb, 4" face x 4 1/4" total diameter, 12 Volt , 2-Screw Terminals, (Have 4) Spec's |
|
$30 ea. |

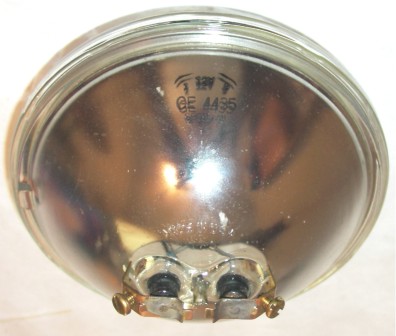

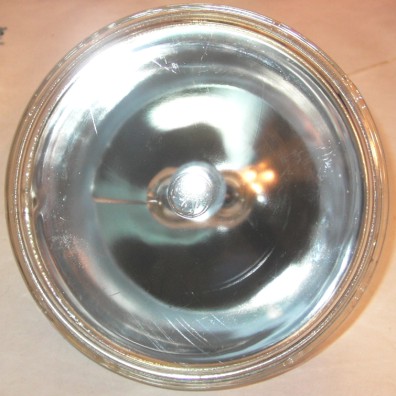

| 4435 | 56 Up | Sealed Beam, Spotlight Bulb, 5 1/2", 12 Volt, 2-Screw Terminals, (Have 0) |   |
$25Sold |
| 4435R | 56 Up | Red Sealed Beam, Spotlight Bulb, 5 1/2", 12 Volt, 2-Screw Terminals, (Have 1) | See Fog Bulbs | |
| 4436 | 56 Up | Sealed Beam, Spotlight Bulb, 5 1/2", 12 Volt, 35 Watt, 60 Candle Power, I/12.8V/35W/ST2/PAR46/300H, 2-Screw Terminals, (Have 0) | |
$25Sold |
| 4516 | Up to 56 | Sealed Beam, Spotlight Bulb, 4" face x 4 1/4" total diameter, 6-8 Volt , 2-Screw Terminals, (Have 0) Spec's |
|
$30Sold |

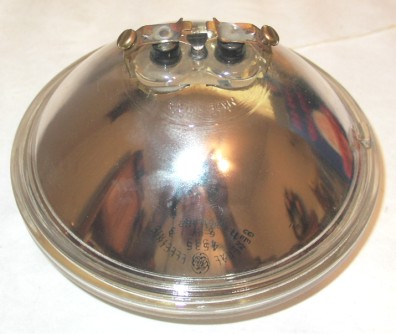

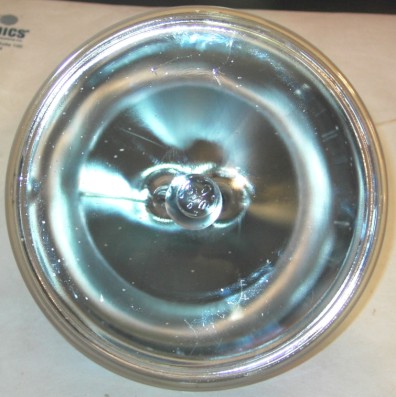

| 4535 | Up to 56 | Sealed Beam, Spotlight Bulb, 5 1/2", 6-8 Volt , 2-Screw Terminals, (Have 6) Spec's |   |
$30 ea. |

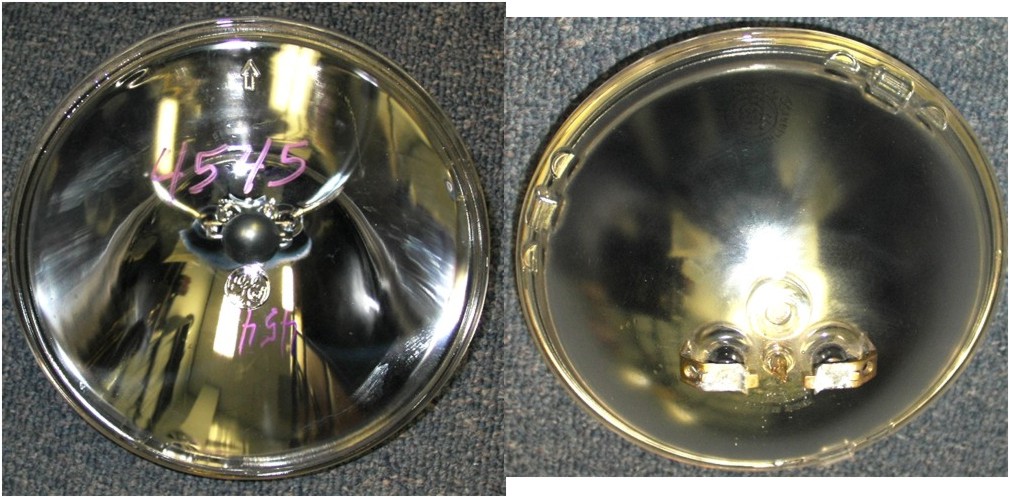

| 4545 | 56 Up | Sealed Beam, Search light Bulb, 7", 12 Volt, 100 Watt, 2-Screw Terminals, (Have 1) Spec's |
 |
$50 ea. |
| 4546 | 56 Up | Sealed Beam, Hand Lantern light Bulb, 5 1/2", 4.7 Volt, 0.5 Amps 2-Screw Terminals, (Have 2) Spec's |
 |
$25 |
| 4557 | 56 Up | Sealed Beam, Aircraft or landing light Bulb, 5 1/2", 28 Volt, 1000/400 Watts, 3-Screw Terminals, (Have 1) Spec's | $30 | |
| 4636 | 56 Up | Sealed Beam, Spotlight Bulb, 5 1/2", 12 Volt, 80Watt, I/12.8V/80W/ST2/PAR46/200H, 2-Screw Terminals, (Have 1) | |
$30 ea. |
| 7400 | 56 Up | Sealed Beam, Spotlight Bulb, 4" face x 4 1/4" total diameter, 12 Volt - 35Watt , 2-Screw Terminals, Wagner, I/12V/35W/SOT2/PAR36/BA12X5/300H (Have 2) |
|
$30 ea. |
|
See Fog/Driving Lights Page for Fog and Driving Light Bulbs (Click Here) |
||||
|
6 & 12 Volt Fog / Specialty Bulbs - Single Element Sealed Beam |
||||
