| Part # | Year/Usage | Description | Picture | Price |
|
See Fog/Driving Lights Page for Fog and Driving Light Bulbs (Click Here) |
||||
|
For Headlight, Fog and Driving Light Bulbs (Click Here) |
||||
| KA0901 KNS | 28-29 | Headlight Bulb Sockets, Just like Original, Fits all Ford Cars & Trucks, New Dual Pin Headlight Bulb socket (Long One) and single pin running light socket with 3-pin plug on end, New (Have 10) |
 |
$20 ea. |
| KA0900 KNS | 30-31 | Headlight Bulb Sockets, Just like Original, Fits all Ford Cars & Trucks, New Dual Pin Headlight Bulb socket (Short One) and single pin running light socket with 3-pin plug on end, New (Have 10) |
 |
$20 ea. |
|
Regular Bulbs, Tail - Brake - Park - Turn - Instrument - Dome - Fog - Backup |
||||
|
Bulb Sockets - Dual Function (2-Contact) - All Makes |
||||
| C606615 | 54-73 | Pigtail only, All GM cars and trucks that use the push-in and twist contacts at the back of the light socket, new dual contact, (in Stock) |
 |
$10 ea |
| 34228 | Replacement | New Dual Element, Offset Pins, Bulb Socket. Single Tab Mounting with 1 screw. For 6 or 12 Volt Applications. 9 Inch leads, 15/16" long x 5/8" dia. x 1 1/4" wide including tab. (on order). |
 |
$10 ea. |
| Bottom Tab | Replacement | New Dual Element, Offset Pins, Bulb Socket. Single Tab Mounting with 1 screw at the bottom of the bulb socket. For 6 or 12 Volt Applications. 9 Inch leads, 15/16" long x 5/8" dia. x 1 1/4" wide including tab. (Have 0 in stock). |
 |
$10Sold |
| 33138 KNS | Replacement | New Dual Element, Offset Pins, Bulb Socket. 2-Tab Mounting with screws or rivets. Mounting tabs are about half way up socket, 1/2" to top of socket. For 6 or 12 Volt Applications. 9 Inch leads, 15/16" long x 5/8" dia. x 1 7/8" wide including tabs. (on order.) |
 |
$10 ea. |
| C7002X | Conversion kit | Converts 37/38 Chevy Car and 1940-53 GM Pickup to 12 Volt using one 1157 Dual Element Bulb, (cant get anymore. ) |
40-53ChevyTrk_12VoltConversion1.JPG){kind=small} 40-53ChevyTrk_12VoltConversion2.JPG){kind=small} |
$sold out. |
| Ford | 40's – 50’s | Bulb Socket, Dual-Pin, 2-element (1157 Style with offset tabs) push in and twist, Fits 49-50 Merc, 49-50 Ford Etc. (Have 0) |
 |
$10Sold |
| Ford/ MOPAR | 40's - 50's | old Dual-Pin 2-element (1157 Style - Offset Pins Bulb) Push in and twist, bulb socket that pushes in and twist the cap to lock. (have 7) |
 |
$10 ea. |
| GM - Caddy - Buick | 40's - 50's | Dual Element socket for offset pins bulb (1157 Style - Offset Pins Bulb), Locks in with 2 spring tabs on case of light (Have 1) |
 |
$10 |
| GM - Pontiac - Olds | 40's - 50's | Dual Element socket for offset pins bulb (1157 Style - Offset Pins Bulb), Locks onto 2 buttons on case of light (Have 1) |
 |
$10 |
| Ford/ MOPAR | 40's - 60's | old Dual-Pin 2-element (1157 Style - Offset Pins) Push in and twist, bulb socket that pushes in and twist the socket to lock 2 tabs that extend down the side of the socket. (have 2) |
 |
$10 ea. |
| 34200UP or AV8756BOB | 50's & 60's All Makes | Dual Element socket (1157 Style - Offset Pins Bulb), for 1 1/16" - 1 1/8" diameter hole, Metal assembly with metal tabs, Snap-In, New Repro (In Stock) |
 |
$10 ea. |
| All Makes | 50's - 60's | old Dual-Pin 2-element (1158 Style - straight across Pins Bulb) Push in and twist, bulb socket that snaps-in to 3/4" hole. (have 1) |
 |
$10 |
| MOPAR or Ford | 50's & 60's All Makes | Dual Element socket (1157 Style - Offset Pins Bulb), for 1 1/16" diameter hole, Metal assembly with metal tabs, Snap-In, Good used original style (In Stock) |
 |
$10 ea. |
| GM | 50's | Dual Element socket for offset pins bulb (1157 Style - Offset Pins Bulb), Snaps onto 1-1/8" spring opening on case of light, has wire socket push & twist on other end (Have 6) |
  |
$10 ea. |
| GM | 60's | Dual Element socket (1157 Style - Offset Pins Bulb), Plastic snap-in for smooth hole with single slot Like AV8750 (Have several) |
  |
$10 ea. |
| AV8750 | 60's
& 70's 59 - 68 GM & Other Makes |
Dual Element socket (1157 Style - Offset Pins Bulb), for 1 1/16" diameter hole, Plastic assembly with metal tabs, Snap-In, New Repro (In Stock) |
 |
$10 ea. |
| GM? | 70"s & 80's | Dual-Pin Bulb Socket, 2-element (1157 Style Offset Pins bulb) push in and twist with 3 tabs & 3 wires - 1 tab is longer, (have Several) |
 |
$10 ea. |
| MOPAR | 40"s & 50's | Dual-Pin, 2-element (1157 Style - Offset Pins Bulb) push in and twist with 4 tabs, Bulb Socket (have several) |
 |
$10 Sold |
| 40's & 50's MOPAR | 40"s & 50's | Dual-Pin metal Bulb Socket, 2-element (1157 Style bulb) push in and twist end Cap, 2 tabs - cap twists to lock and unlock (have 1) |
 |
$20 |
| MOPAR | 50's & 60's All Makes | Dual Element socket (1157 Style - Offset Pins Bulb), for 1 1/16" diameter hole, Metal assembly with metal tabs, Snap-In, 2 spade plug on end, Good used original style - Some have rubber cover (Have 4) |
 |
$10 ea. |

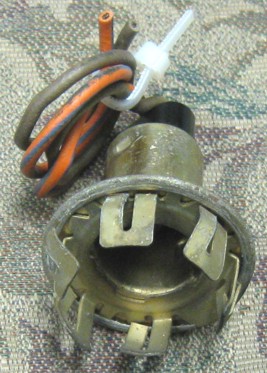

| MOPAR | 50's - 60's - 70's | Dual Element Snap-In Bulb Socket (1157 Style - Offset Pins Bulb), Fits 1 1/8" hole, (Have several) |
 |
$10 ea. |
| MOPAR-1/2 | 50's - 60's - 70's | Dual Element Snap-In 1/2 Inch Extension Bulb Socket (1157 Style - Offset Pins Bulb), Fits 1 1/8" hole, (Have several) |
 |
$10 ea. |
| MOPAR-1 | 50's - 60's - 70's | Dual Element Snap-In 1-Inch Extension Bulb Socket, (1157 Style - Offset Pins Bulb) Fits 1 1/8" hole, (Have several) |
 |
$10 ea. |
| MOPAR-1 1/2 | 50's - 60's - 70's | Dual Element Snap-In 1 1/2-Inch Extension Bulb Socket (1157 Style - Offset Pins Bulb), Fits 1 1/8" hole, (Have 2) |
 |
$10 ea. |
|
MOPAR 2 Tab Mount |
60's - 70's | Dual Element Screw Mount Bulb Socket (1157 Style - Offset Pins Bulb), Has 2 tabs for mounting, (Have 2) |
 |
$10 ea. |
| MOPAR 2 recessed Tab Mount | 60's - 70's | Dual Element Screw Mount Bulb Socket (1157 Style - Offset Pins Bulb), Has 2 recessed tabs for mounting, (Have 1) |
  |
$10 ea. |
| MOPAR | 70"s & 80's | Dual-Pin Bulb Socket, 2-element (3157 Style Push-in bulb) push in and twist with 3 tabs - 1 tab is longer, (have 1) |
 |
$10 ea. |
| MOPAR? | 70"s & 80's | Dual-Pin Bulb Socket, 2-element (1157 Style Offset Pins bulb) push in and twist with 3 tabs & 4 wires - 1 tab is longer, (have 3) |
 |
$10 ea. |
| MOPAR | 70"s & 70's | Dual-Pin metal Bulb Socket, 2-element (1157 Style bulb) push in and twist with 3 tabs - 1 tab is longer, 1/2" extension depth (have 8) |
 |
$10 ea. |
| Ford | 70's | Bulb Socket, Dual-Pin, 2-element (1157 Style with offset tabs) push in and twist, (In Stock) |
 |
$10 ea. |
| Ford | Newer | Bulb sockets, Use 3057 Push-In Style bulbs, 2-Element (have 0 deep and 0 shallow) |
 |
$3Sold |
| GM | Later Models | Dual Element socket (1157 Style - Offset Pins Bulb), for hole with three metal tabs (Have several) |
 |
$10 ea. |
| ? | Later Models | Dual Element socket, Used Push-In Light Bulb, (3157 Style - Offset Pins Bulb) 3-Tab push in and twist socket, Used - Good (have 0) |
 |
$3Sold |
| IHC | Newer | Assembly (1157 Style - Offset Pins Bulb), Will fit 68-? Scout II Taillight, Dual Element (have 3) |
 |
$10 ea. |
| XA2 | Newer | Assembly (Dual Element 1157 Style - Offset Pins Bulb), Will fit ?, 4-Tabs with oposites being sized the same (have 1) | $10 | |
|
Dual Element Socket Repair Kit |
||||
| C-555908-1 | Repair Up thru 1980 | GM Bulb Socket Contact Kit, Contains Bulb Socket Push-and-Twist Contact Holder & 7' of wiring. Dual Element Bulb Holders Only. Contact Holder has two pins straight across from each other. This may also fit other makes with similar Push-and-Twist Bulb Socket Contact Holders. (In Stock) |
  |
$10 ea. |
| GM | 50's & 60's | GM Bulb Socket Contact Assembly, NOS, Contains Bulb Socket Push-and-Twist Contact Holder. Dual Element Bulb Holders Only. Contact Holder has two pins straight across from each other. This may also fit other makes with similar Push-and-Twist Bulb Socket Contact Holders. (Have 0) |
 |
$10Sold |
| Yankee 3431A | Plunger Plug, Double Contact, For Yankee Lights ( Have 0) |
 |
$10Sold | |
| 34202 | Pigtail | New, Dual element Socket Pigtail, (In Stock) |
 |
$2 ea. |
|
Single Function (1 contact) - Bulb Sockets |
||||
| 34201 | Pigtail | New, Single element Socket Pigtail, (have 4 in stock) |
 |
$2 ea. |
| 34229 | Replacement | New Single Element, Straight Pins Bulb Socket. Single Tab Mounting with 1 screw. For 6 or 12 Volt Applications. 9 Inch leads, 15/16" long x 5/8" dia. x 1 1/4" wide including tab. (In Stock). |
 |
$10 ea. |
| 3/4" | GM | 1 Element snap-in socket, S.C.Bayonet Standard size 2-pin base, pins directly across, snaps into a 3/4" hole, Used - very nice (Have 1) |
 |
|
| 34198UP | 50's & 60's All Makes | Single Element socket (1156 Style - Straight Pins Bulb), for 1 1/16" to 1 18" diameter hole, Metal assembly with metal tabs, Snap-In, New Repro (In Stock) |
|
$10 ea. |
| GM | 60's | Single Element Push-and-Twist Contact Holder socket, for GM Lights that don't have a separate snap-in socket (Have 0) |
 |
$10 |
| GM | 50's & 60's All Makes | Single Element socket (1156 Style - Straight Pins Bulb), for 15/16" to 7/8" diameter hole, Metal assembly with metal tabs, Snap-In, Some New & some used (Have 0) |
 |
$10
ea. sold |
| GM | 60's - 70's | Single Element socket, for smooth hole with single slot Like AV8750 (Have several) |
 |
$10 ea. |
| GM | Later | Dual-Pin, 1-element (1156 Style) push in and twist, Bulb Socket with 3 metal tabs & separate ground wire (1 Hot wire & 1 Ground Wire) (have several) |
 |
$10 ea. |
| GM | 50's | Single Element socket for bulb pins that are straight across (1156 Style - Straight Across Pins Bulb), Snaps onto 1-1/8" spring opening on case of light, Uses wire socket push & twist on other end (Have 2) |
 |
$10 |
| GM - Caddy - Buick | 40's - 50's | Single Element socket for straight pins bulb (1156 Style - Straight Pins Bulb), Locks in with 2 spring tabs on case of light (Have 2) |
 |
$10 ea. |
| GM? | 70"s & 80's | Single-Element plastic Bulb Socket, 1-element (1156 Style bulb) push in and twist with 3 tabs - 1 tab is Shorter, (have 3) | $10 ea. | |
| IHC | Newer | Assembly, Will fit 68-? Scout II Taillight, Single Element (have 1) |
 |
$10 |
| Ford | Later | Bulb Socket, Dual-Pin, 1-element (1156 Style) push in and twist, (In Stock) |
 |
$10 ea. |
| Ford | 70's | Park Light or Tail Light Single Element Bulb Holders for like 1156 style bulbs, Used - Fair to good condition. (Have 2) |
 |
$10 each. |
| Ford, GM, Mopar, Others 1" | 50's & 60's | Bulb Socket, 1-element (1156 Style) Dual-Pin straight across, Snap-in to 1 1/4" hole, 2-Wire - 1 Ground & 1 Hot, Used - Good condition (Have Several In Stock) |
 |
$10 ea. |
| Ford/ MOPAR | 1940's-50's | Dual-Pin, 1-element (1156 Style - Even Pins) Push in and twist, bulb socket that pushes in and twist the cap to lock. (have 6) |
  |
$10 ea. |
| Mopar | 50's | push in and twist Bulb Socket, Dual-Pin, 1-element 1156 Style bulb (have several) |
  |
$10 ea. |
| MOPAR | 50's & 60's All Makes | Single Element socket (1156 Style - Straight Pins Bulb), for 1 1/16" diameter hole, Metal assembly with metal tabs, Snap-In, 1 spade plug on end, Good used original style - Some have rubber cover (Have 1) |
 |
$15 |
| MOPAR Side Marker Socket | 60's & 70's All Makes | Single Element socket (631 Style - Straight Pins Bulb), for 5/8" diameter hole, Plastic assembly with metal tabs, Snap-In, 1 wire, Good used original style - Some have LED bulb included (Have 3) |
 |
$15 ea. |
| MOPAR-1 1/4 | 50's - 60's - 70's | Single Element Snap-In 1 1/4-Inch Extension Bulb Socket (1156 Style - Straight Across Pins Bulb), Fits 1" hole, (Have 2) |
 |
$10 ea. |
| Mopar 5/8" Snap-In
|
60's | Bulb Socket, Fits Mopar Side Markers & others, Bulb is Dual-Locating Pin like 1156 - straight Across, 1-element (1156 Style bulb), Socket snaps-into 1 1/4" hole, (have 2) |
  |
$10 ea. |
| Mopar Snap-In | 60's | Bulb Socket, Fits 63-65 Dart Backups & others, Bulb is Dual-Locating Pin like 1156 - straight Across, 1-element (1156 Style bulb), Socket snaps-into 1 1/4" hole, (have 2) |
|
$10 ea. |
| MOPAR | 70"s & 80's | Dual-Pin Bulb Socket, 1-element (1156 Style bulb) push in and twist with 3 tabs - 1 tab is longer, (have 2) |
 |
$10 ea. |
| MOPAR | 70"s & 80's | Bulb Socket, 1-element (1156 Style bulb) push in and twist, with 2 tabs - 2 slots, (have 1) |
 |
$10 |
| Japanese | 70"s & 80's | Single-Element plastic Bulb Socket, 1-element (1156 Style bulb) push in and twist with 3 tabs 90 degrees apart, (have 1) | $10 | |
|
194 Style Push-In Style Bulb sockets |
||||
| C679101 | 67 & Newer | Bulb Socket
for Side Marker, 194 Bulb
Style, 5/8" Hole with Squares, (have several)
 |
 |
$10 ea. |
| Square or 8917345 |
68 & Newer | Bulb Socket
for Side Marker, 194 or 921 Bulb
Style, 5/8" Hole with Squares, Wires are 90 degrees from socket (have 34 in
Stock)
|
   |
$10 ea. |
| TMC 377X | 68 & Newer | Bulb Socket
for Side Marker, 194 or 921 Bulb
Style, 5/8" Hole with Squares
,
New, (have several) |
 |
$10 ea. |
| Square | 68 & Newer | Bulb Socket for Side Marker, 194 Bulb Style, 5/8" Hole with different Squares, (have several) |
 |
$10 ea. |
| Round | 68 & Newer | Bulb Socket for Side Marker, 194 Bulb Style, Round Hole with slots, (have several) |
 |
$10 ea. |
| IH | 68 & Newer | Bulb Socket for Side Marker, 194 Bulb Style, Round hole with lands near the bottom (Have several) |
 |
$10 ea. |
| M-10971 Mopar |
70's | Mopar Bulb Socket for Side Marker, 194 Bulb Style, Square & Round (Have 9) |
 |
$10 ea. |
| EDTB-
15460-AA Ford |
70s - 80's Ford | Bulb Socket for Side Marker or Cab Roof Lights, 194 Bulb Style, 5/8" Hole with Squares (Have 14) |
 |
$10 |
| Miniature Bayonet 2-Pin BA9s Bulb Sockets | ||||
| 2-Tab | 20's-80's | Single Contact, Miniature BA9s bulb socket with 2 tabs for conections. Mount with 1 screw at ground & 1 tab for hot connection, New, (Have 14 in stock) |
 |
$10 ea |
| Long Tab | 20's-80's | Single Contact, Miniature BA9s bulb socket with 1 wire for conections. 2 1/4" Long tab Mount screwed to ground, Used - Very nice socket (Have 1 in stock) |
 |
$10 |
| 1/2" Snap-In | 20's-80's | Single Contact, Miniature BA9s bulb socket with 1 wire for power conection. Snaps into 1/2" hole for ground, Used - Very nice socket (Have 1 in stock) |
 |
$10 |
| 5/8" Snap-In | 20's-80's | Single Contact, Miniature BA9s bulb socket with 1 wire for power conection. Snaps into 5/8" hole for ground, Used - Very nice socket (Have 4 in stock) |
 |
$10 ea. |
| 5/8" Press-In | 20's-80's | Single Contact, Miniature BA9s bulb socket with 1 wire for power conection. Presses into 5/8" hole for ground, Used - Very nice socket (Have 1 in stock) |
 |
$10 |
| 11/16" | 40's, 50's & 60's | Bulb Socket, 1-element (Mini Bayonet like 51, 53, 55, 57, 61 Size bulbs) push in and twist, 3/4" total dia. fit in 11/16" hole (Have 1) |
 |
$10 ea. |
| Mini Parklight | 20's - 30's | Bulb Socket and bracket for Mini Bayonet like 51, 53, 55, 57, 61 Size bulbs, Parking Light conversion kit PL83, (Have 2) |
 |
$10 ea. |
| Mini | 40's, 50's & 60's | Bulb Socket, 1-element (Mini Bayonet like 51, 53, 55, 57, 61 Size bulbs) push in and twist, 1" total dia. fit in 3/4" hole (Have 0) |
 |
$10Sold |
| Mini | 40's, 50's & 60's | Bulb Socket, 1-element (Mini Bayonet like 51, 53, 55, 57, 61 Size bulbs) push in and twist, 9/16" total dia. (Have 10 in Stock) |
 |
$10 ea. |
| Press-In Mini | 40's, 50's & 60's | Bulb Socket, 1-element (Mini Bayonet like 51, 53, 55, 57, 61 Size bulbs) push in and twist, Press into hole - Used - Bent (Have 1) |
 |
$2 |
|
German - Hella Bulb Sockets |
||||
| Hella | Various | Dual Element Bulb Socket, Used - Good Condition (Have 10) |
 |
$10 ea. |
| Hella | Various | Single Element Bulb Socket, Used - Good Condition (Have 5) |
 |
$10 ea. |
